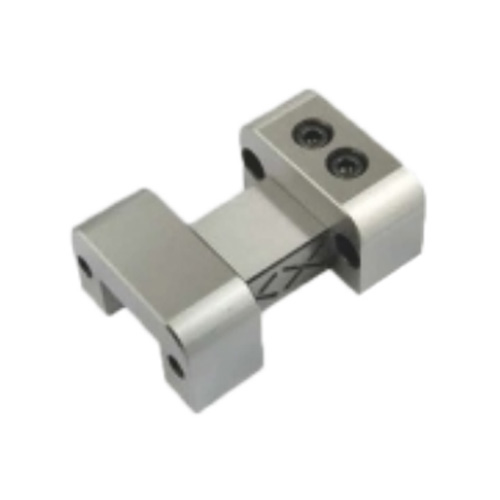

Slider In Injection Molding refers to a moving component inside a mold system used to form undercut shapes. Many plastic parts are not simple straight structures. Some contain side holes, hooks, or recessed areas that cannot be released directly from a fixed mold direction. A slider moves sideways inside the mold to help release those complex shapes after cooling.
Inside daily manufacturing environments, molded parts such as housings, connectors, or functional covers often rely on this movement system. Without it, the part could get stuck during demolding. That is where Ejector Injection Molding works together with slider movement, pushing the part out after the mold opens while the slider retracts from undercut positions.
Material selection plays a direct role in how smooth this process feels during repeated cycles. A slider moves again and again inside tight metal guides, so surface durability and friction behavior become important in long operation.
Inside a mold, movement is not random. A slider follows a guided path controlled by angled pins or mechanical rails. When the mold closes, the slider moves into position and shapes part of the cavity. During opening, the movement reverses, pulling away from the formed undercut area so the part can be released.
The motion connects closely with Ejector Injection Molding. Once the mold opens, ejector pins push the finished part outward. At the same time, the slider must already be retracted so no interference occurs during release. Timing between both movements decides whether the part comes out smoothly or experiences surface stress.
The process usually follows a fixed cycle:
Each movement depends on mechanical contact between metal surfaces. Even small friction changes can influence motion consistency.
Inside injection molding systems, slider movement happens under repeated stress. The environment is not static. Temperature rises when molten material enters the cavity, then drops during cooling. That cycle repeats continuously.
Several conditions affect slider performance:
Friction becomes noticeable in long production cycles. Even smooth metal surfaces slowly develop wear marks over time. Heat adds another layer of pressure since expansion changes the fit between moving parts.
Ejector Injection Molding also influences mechanical balance. When ejector pins push the part, the slider must stay fully retracted to avoid collision or dragging marks on the product surface.
Steel remains a common choice for slider components due to its structural strength and wear resistance. Different steel types serve different roles depending on mold conditions and expected cycle load.
Common material categories include tool steel, pre-hardened steel, and surface-treated steel. Each type behaves differently under pressure and heat.
Steel selection often depends on how often the mold cycles and how much contact pressure appears during sliding movement.
Material choice also affects how smoothly Ejector Injection Molding interacts with slider movement. Stable surface behavior reduces resistance during coordinated part release.
Stainless steel often appears in environments where moisture or chemical exposure may affect mold stability. Its resistance to corrosion helps maintain surface condition during long operation periods.
Alloy steel brings a different balance. It provides strength while allowing easier machining compared with harder tool steels. That makes it suitable for complex slider shapes where precision channels or grooves are required.
Inside injection molding systems, material choice depends on working conditions more than structure alone. A mold running in stable dry conditions may use different materials compared with one exposed to humidity or cooling fluid variation.
| Material Type | Main Behavior | Typical Use in Slider System |
|---|---|---|
| Tool steel | Strong wear resistance | High friction sliding zones |
| Pre-hardened steel | Balanced hardness | General slider body structure |
| Treated steel | Reduced surface friction | Contact rails and guide surfaces |
Compatibility with Ejector Injection Molding also matters. When slider surfaces remain stable, ejector pins can push parts without interference or drag marks, helping maintain surface quality of molded products.
Copper-based materials appear less frequently in structural slider bodies, yet they play a supporting role in thermal balance. Heat builds up inside mold cavities during repeated injection cycles. Copper elements help transfer heat away from localized areas.
In some designs, copper inserts are placed near sliding zones to reduce heat concentration. Lower heat variation helps maintain stable movement, since metal expansion directly affects clearance between slider and guide rails.
Interaction between copper and steel components requires careful design. Different materials expand at different rates, so placement usually focuses on controlled zones rather than full structural use.
In systems where Ejector Injection Molding runs frequently, thermal stability becomes even more important since repeated heating and cooling cycles can gradually affect alignment if not balanced properly.

Surface treatment affects how a slider behaves during movement inside a mold. Even with strong base materials, untreated surfaces may develop friction marks after repeated cycles.
Common surface improvements include hardening, coating, and polishing. Each one changes how the surface interacts with surrounding metal guides.
A smoother surface helps reduce resistance when the slider moves in and out of position. That also supports coordination with Ejector Injection Molding since reduced friction allows more predictable timing during part release.
In injection molding systems, Slider In Injection Molding works under repeated movement inside narrow metal guides. When material choice does not match real working load, small issues start quietly and then become more obvious during long operation.
One common situation is surface wear on contact zones. The slider keeps moving in and out of position, and friction slowly changes the smoothness of the guide path. Once the surface becomes uneven, movement feels less steady, and slight resistance can appear during mold opening.
Heat influence is another factor. Mold cavities receive molten material, then cool down, and this cycle repeats. When material does not handle temperature changes well, slight expansion or contraction affects fitting clearance. Movement no longer stays as predictable as before.
Timing problems may also appear between slider and Ejector Injection Molding system. If slider does not fully return to its original position, ejector pins may push against partially engaged surfaces. That situation can leave marks on molded parts or create small sticking points during release.
Typical issues seen in production include:
These issues rarely appear all at once. They usually build slowly, especially in molds running continuous cycles for long periods.
Inside a mold system, movement follows a fixed order. Slider In Injection Molding handles undercut release first, then Ejector Injection Molding takes over to push the part out. The coordination between both movements decides whether the product separates cleanly or faces surface stress.
When mold opens, slider moves sideways along its guide path. This movement clears the undercut area so the part is no longer locked inside the cavity. Only after that space is fully open does the ejector system begin pushing forward.
If movement timing overlaps, resistance can appear. The molded part may drag slightly across remaining contact areas, leaving marks or affecting surface finish. In more sensitive parts, even small interference can change final shape quality.
The working sequence usually feels like a chain of motion: slider moves away, space opens, ejector pushes, part releases, then both systems return to starting position for the next cycle.
In daily production environments, this coordination is handled mechanically or through controlled movement paths. No extra complexity is needed, yet accuracy in sequence remains important for stable operation.
Material inside slider systems affects more than just movement speed. It shapes how stable the entire mold behaves after repeated use. When material keeps its structure under pressure and heat, guide accuracy remains steady for a longer time.
Steel-based materials often hold shape well under continuous load. Alloy variations offer a balance between hardness and machinability, making them suitable for more complex slider designs. Stainless materials appear in environments where moisture or cooling conditions may influence surface condition.
Compatibility with Ejector Injection Molding also depends on material stability. When slider surfaces wear unevenly, ejector pins may not align smoothly during part release. That can create uneven force during pushing stage and affect final product surface condition.
Material selection usually follows working conditions such as heat level, cycle frequency, and contact pressure inside the mold. A mismatch between material and environment often leads to early adjustment work during production.
Slider material design is slowly shifting toward more balanced surface behavior. Instead of relying only on hardness, attention also goes toward how smoothly the surface moves inside guide rails.
One direction focuses on reducing friction through surface modification. Rather than changing the entire material, only the outer layer is adjusted. That helps keep internal strength while improving sliding movement.
Another direction involves combining different material behaviors in one system. A strong base supports structural load while a modified surface layer handles contact wear. That separation of function helps maintain movement consistency over long cycles.
Heat stability also receives more attention. As molding cycles become faster in many production environments, temperature changes happen more frequently. Materials that keep dimensional stability under repeated heating and cooling help reduce alignment drift inside the mold.
Even with suitable materials, slider systems require regular attention during operation. Continuous movement inside tight metal paths slowly changes surface condition. Small wear particles may appear inside guide areas and affect smooth motion.
Cleaning helps maintain stable movement. Removing residue from guide rails reduces friction and keeps motion consistent during opening and closing cycles. Lubrication is sometimes applied depending on mold design, helping reduce direct metal contact in sliding areas.
Inspection usually focuses on movement feel rather than appearance alone. Slight resistance during sliding, uneven return motion, or small delay in retraction often signals early wear.
Practical handling habits in production often include:
Once movement becomes inconsistent, correction is usually simpler when handled early rather than waiting for full system disruption.
Different materials behave differently once installed inside slider systems. Some move smoothly in early cycles, while others remain stable over longer running periods. The difference becomes more noticeable during continuous operation rather than short testing.
Tool-based steel often shows steady movement with gradual surface polishing over time. Alloy types tend to distribute wear more evenly across contact areas. Stainless materials maintain surface condition in environments with moisture or cooling influence. Surface-treated options may feel smoother at the beginning of operation, though coating behavior can slowly change after extended use.
Ejector Injection Molding interaction also depends on how stable the slider remains during repeated cycles. When movement stays balanced, ejector pins push parts without extra resistance. When wear increases, slight mismatch can appear during release.
