Gear Head Hard Track Machining Center Series
  • Gear Head Hard Track Machining Center Series
  • Gear Head Hard Track Machining Center Series

Gear Head Hard Track Machining Center Series

Characteristics of machine tool
VHC high rigidity vertical machining center has drilling, iron, boring, reaming and other cutting functions. lt is suitable for heavy cutting of large diameter tool with high feed rate. Reasonable and reliable product structure, stable quality and easy operation.
1. The machine tool adopts high quality Mihannah casting, and the lathe body adopts four-guide rail structure, with excellent stability of ultra-wide gauge.
2. All castings are tempered twice, and the guide surface is quenched at high frequency, with high rigidity and high precision.
3. All three axles use polytetrafluoroethylene plastic sliding guide rail with small friction coefficient, good shock absorp tion, wear resistance and high precision.
4. The machine tool has large working stroke and wide machining range.
5. The machine tool adopts full-cover protection design to provide a good working environment.

Special configuration
Chain chip conveyor
Water outlet from spindle center

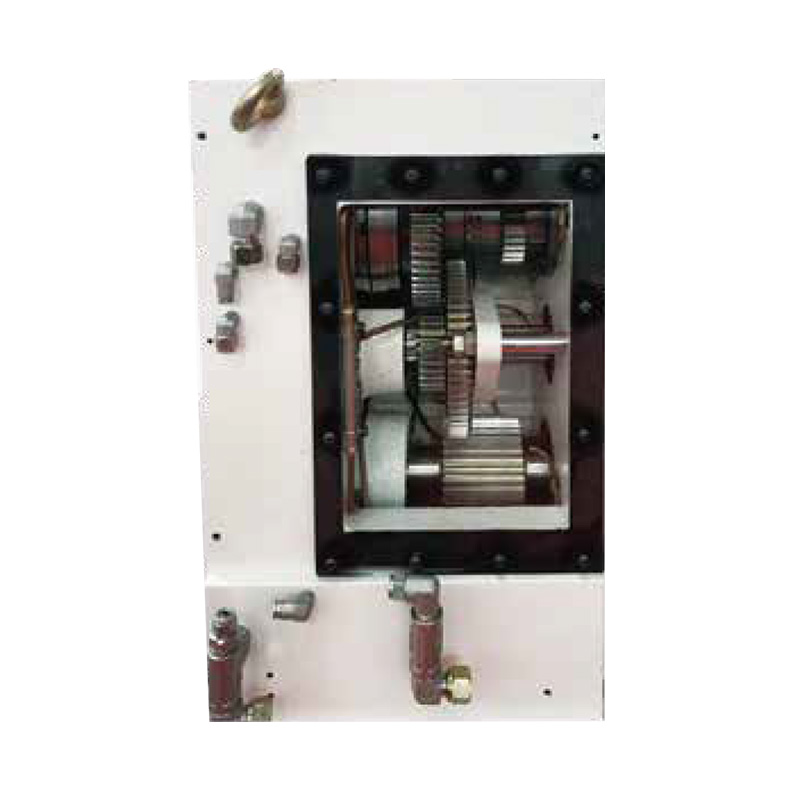

BT50 gear head
Electric cabinet air conditioner
Direct spindle
Oil cooler

PREV: Gear Head Vertical Machining Center Series Next: Gantry Machining Center Series
Project Untt VHC1850 VHC2060 VHC2080 VHC1850L VHC2060L VHC2080L
Work table
Table size mm 1800x500 2000x600 2000x800 2000x500 2200x600 2200x800
Table T-slot 5-18x100 5-22x100 5-22x150 5-18x100 5-22x100 5-22x150
Maximum load of workbench kg 1500 1800 2200 1500 2000 2500
Processing range
Leftand righttrnavel(X) mm 1300 1600 1600 1600 1800 1800
Foreandaft travel(Y) mm 500 600 800 500 600 800
Up and DownTrvel(Z) mm 600 700 800 600 700 800
Distance from spin dle center t ocolumn guide rail mm 615 725 912 615 725 912
Distance from spin dle end face to work table mm 120-720 120-820 120-920 120-720 120-820 120-920
Splndle
Spindle tool holder BT50 BT50 BT50 BT50 BT50 BT50
Spindle speed (geart rans mission) 1stgear/high rpm 3000/5000 3000/5000 3000/5000 3000/5000 3000/5000 3000/5000
Spin dle motor power kw 11/15 15/18.5 15/18.5 11/15 15/18.5 15/18.5
Three-aods feed drive
three-axis cutting feed mm/min 10000 10000 10000 10000 10000 10000
three-axis fast moving speed m/min 16/16/16 16/16/16 16/16/16 16/16/16 16/16/16 16/16/16
three-axis fast moving speed Three hard rails
X/Y/Z axis ball screw spedfication mm Φ50/Φ50/Φ50 Φ50/Φ50/Φ50 Φ50/Φ63/Φ50 Φ50/Φ50/Φ50 Φ50/Φ50/Φ50 Φ50/Φ63/Φ50
Tool magazine
Toolm agazine form Disk manipu lator type
Magazine capadty PCS 24T 4T 24T 24T 24T 24T
Maximum tool diameter(fulltool/blank tool) mm Φ120/Φ200 Φ120/Φ200 Φ120/Φ200 Φ120/Φ200 Φ120/Φ200 Φ120/Φ200
Maximum toollength mm 300 300 300 300 300 300
Maximum weight of cutter kg 18 18 18 18 18 18
Tool change time(tool to
tool)		 Sec 3.5 3.5 3.5 3.5 3.5 3.5
Accuracy
X,Y,Z positioning accuracy mm 0.008/300 0.008/300 0.008/300 0.008/300 0.008/300 0.008/300
X,Y,Z repeat positioning accuracy mm 0.005/300 0.005/300 0.005/300 0.005/300 0.005/300 0.005/300
Other
Compressed air pressure kg/cm2 ≥6
power capacity kVA 30 35 40 30 35 40
Outline Scoop/LxWxH mm 4200x2300x2600 5200x2600x2800 5200x3200x3050 4200x2300x2600 5200x2600x2800 5200x3200x3050

Table size

L W N A B
VHC1850 1800  500  5  50  100
VHC2060 2000  600  5  100  100
VHC2080 2000  800  5  100  150

TableT-slot

W1 W2 H1 H2 H3
VHC1850 32  18  26  12  14
VHC2060 36  22  42  24  18
VHC2080 36  22  42  24  18

Outline scoop

L max W max H max
VHC1850 4112 2460 2600
VHC2060 4920 2690 2800
VHC2080 4920 3100 3050
